HLL36100 -New in Box SCHNEIDER MOLDED CASE CIRCUIT BREAKER
Manufacturer : Schneider Electric
| Part Number | HLL36100 |
| Series | HLL |
| Amperes | 100A |
| Poles | 3 |
| Voltage | 600 |
| kaic | 50 |
| Product Type | MCCB |
| Product Category Code | MCCB |
Regular price
$2,100.00
Sale price
$2,100.00
Regular price
Unit price
Save $0.00
HLL36100 -New in Box SCHNEIDER MOLDED CASE CIRCUIT BREAKER
Regular price
$2,100.00
Sale price
$2,100.00
Regular price
Unit price
Product description

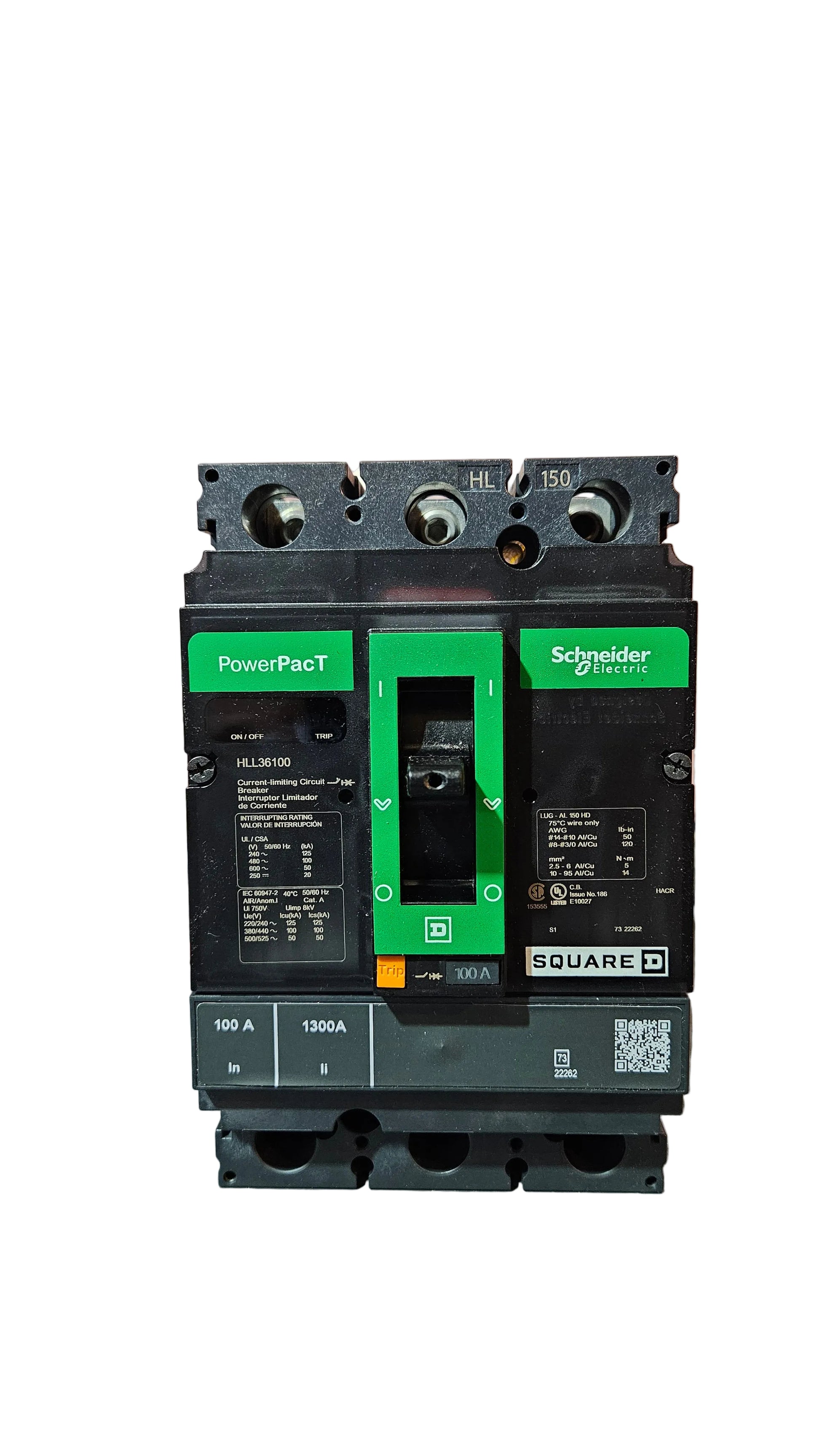

The Square D PowerPact HLL36100 circuit breaker by Schneider Electric is a high-performance molded case circuit breaker designed for reliable protection in commercial and industrial applications. This 3-pole, 3-phase breaker is rated at 100A and 600V, with a short-circuit interrupting capacity of 50kA at 600V.
The breaker is UL listed and CSA certified, current-limiting, and suitable for both feed-through and reverse-fed applications. It features a non-interchangeable thermal-magnetic trip unit with LI (Long-Time and Instantaneous) protection functions. Line and load side lug terminals are included for straightforward installation.
